About Timberline HDZ® Shingles

Get advanced roof protection from eave to ridge. The technologies incorporated into Timberline HDZ® shingles are the keys to unlocking both the 15-Year WindProven™ Limited Wind Warranty and the 25-Year StainGuard Plus™ Algae Protection Limited Warranty.

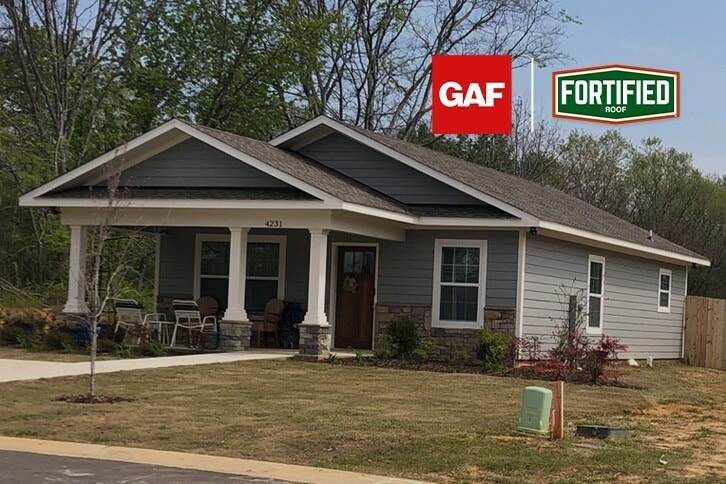

This product can be used to comply with certain FORTIFIED Roof™ requirements. Visit gaf.com/fortified and current FORTIFIED Home™ Standard available at fortifiedhome.org for details. Applicable in the U.S. only.

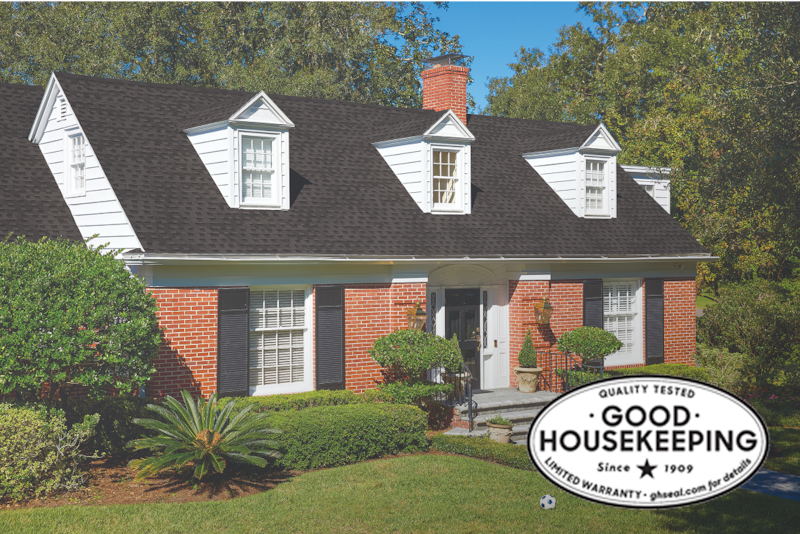

This product has earned the Good HouseKeeping Seal.


125-year StainGuard Plus™ Algae Protection Limited Warranty against blue-green algae discoloration is available only on products sold in packages bearing the StainGuard Plus™ logo. See GAF Shingle & Accessory Limited Warranty for complete coverage and restrictions.

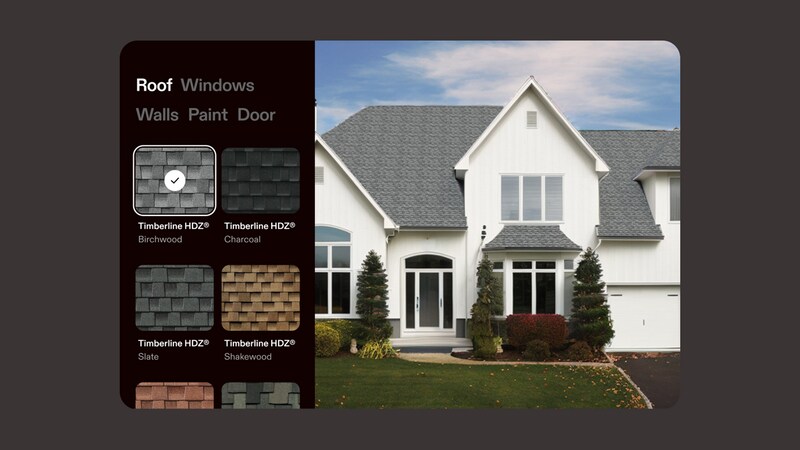

Virtual Home Remodeler Demo | GAF Roofing

Virtual remodeler

Design your roof, your way. Mix and match GAF shingle styles and colors along with siding, trim and doors to create the perfect look for your home.
Design your roof

Features and Benefits

Warranties & Technologies

StainGuard Plus diamond badge

StainGuard Plus™ Algae Protection Limited Warranty

Protect your roof investment with algae resistance so powerful it allows us to offer a 25-year limited warranty against blue-green algae discoloration on many of our most popular products, including Timberline HDZ® Shingles.¹
WindProven diamond badge

WindProven™ Limited Wind Warranty

When installed with the required combination of four qualifying GAF accessories, GAF shingles with LayerLock® technology qualify for the WindProven™ Limited Wind Warranty with no maximum wind speed limitation.2
LayerLock diamond badge

Layerlock® Technology

The StrikeZone® nailing area provides up to 99.9% nailing accuracy. It's so easy to hit that a roofer placed 999 out of 1,000 nails correctly in our test.³
Dura Grip diamond badge

DuraGrip Adhesive

Dura Grip™ Adhesive helps protect your roof from winds and wind-driven rain. When combined with LayerLock™ Technology and the required combination of four qualifying GAF Accessories, it helps provide the holding power behind the WindProven™ Limited Wind Warranty*
¹25-year StainGuard Plus™ Algae Protection Limited Warranty against blue-green algae discoloration is available only on products sold in packages bearing the StainGuard Plus™ logo. See GAF Shingle & Accessory Limited Warranty for complete coverage and restrictions.
²15-year WindProven™ Limited Wind Warranty on Timberline® Shingles with LayerLock® Technology requires the use of GAF Starter Strips, Roof Deck Protection, Ridge Cap Shingles, and Leak Barrier or Attic Ventilation. See GAF Roofing System Limited Warranty for complete coverage and restrictions Visit gaf.com/LRS for qualifying GAF products. For installations not eligible for the WindProven Limited Wind Warranty, see GAF Shingle & Accessory Limited Warranty for complete coverage and restrictions.
³ Results based on study conducted by Home Innovation Research Labs, an independent research lab, comparing installation of Timberline HD® Shingles to Timberline HDZ® Shingles on a 16-square roof deck using standard 4-nail nailing pattern under controlled laboratory conditions. Actual results may vary.
*15-year WindProven™ Limited Wind Warranty on Timberline® Shingles with LayerLock™ Technology requires the use of GAF Starter Strips, Roof Deck Protection, Ridge Cap Shingles, and Leak Barrier or Attic Ventilation. See GAF Roofing System Limited Warranty for complete coverage and restrictions Visit gaf.com/LRS for qualifying GAF products. For installations not eligible for the WindProven Limited Wind Warranty, see GAF Shingle & Accessory Limited Warranty for complete coverage and restrictions.

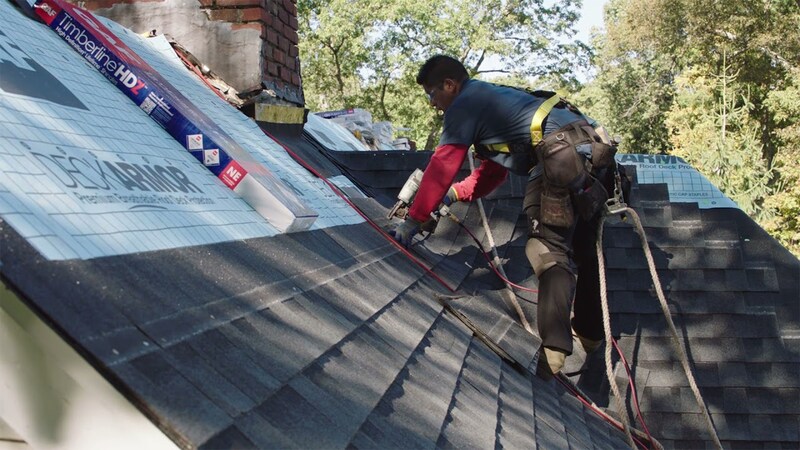

Start for Timberline HDZ advanced roof protectionpromotional video

The look people love. Advanced Roof Protection Eave to Ridge.

Timberline HDZ® Shingles feature a high-definition look with strong warranties. They offers everything you can expect from an architectural shingle roof, and more.

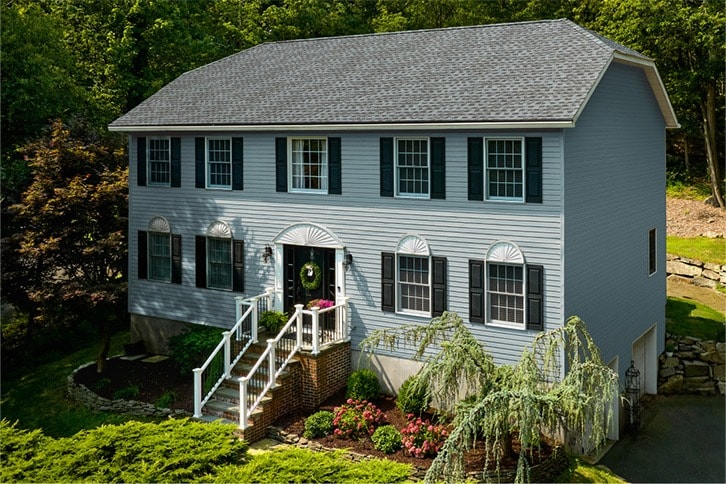

house with timberline hdz shingles and a close up of a timberline hdz shingle in pewter gray

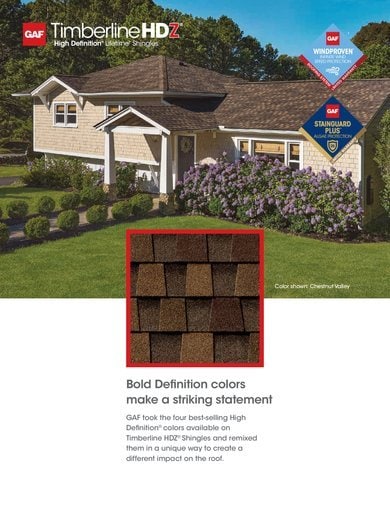

Get the brochure to learn more about Timberline HDZ® Shingles

Find out more about why Timberline HDZ® is GAF's #1 selling shingle. Explore colors, features, and warranty details, and learn about the technologies developed to help protect your roof from wind and blue-green algae staining.
Get brochure

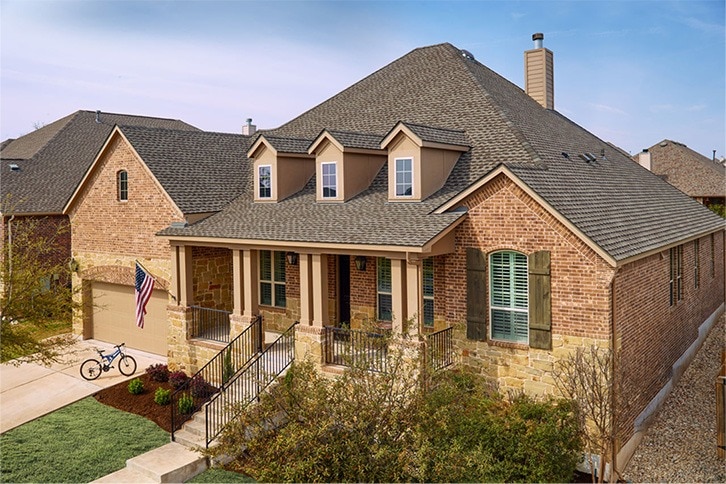

beige house with gray timberline uhdz roof shingles

Go beyond expectations with Timberline UHDZ® Shingles

Timberline UHDZ® shingles offer a combination of beauty and benefits that goes beyond any GAF shingle you’ve been able to choose before. Our patented Dual Shadow Line helps your new Timberline® UHDZ™ Shingles look their very best from every angle, all day long. And with 10% more Time-Release Algae-Fighting Technology, GAF can offer an algae protection warranty longer than we’ve ever offered.
See shingles
A house with a roof built with GAF Energy Timberline Solar Roofing shingles.

Timberline Solar®

Timberline Solar® ES 2 energy shingles generate clean solar energy directly from the shingle without needing solar panels. Timberline Solar® ES 2 shingles are also compatible with any GAF Timberline® collection asphalt shingle, including Timberline HDZ®. It’s a Timberline® roof. With solar energy. It’s that simple.
View solar shingles

Specs & Codes

Specifications
(All Dimensions Are Nominal)
Pieces/Square 64
Bundles/Square 3
Nails/Square¹ 256
Exposure 5 5/8"
Dimensions 13 1/4" x 39 3/8"
Applicable Standards & Protocols
  • Fire - UL Listed to ANSI/UL 790 Class A
  • Wind - ASTM D7158, Class H
  • Wind - ASTM D3161, Class F
  • National - ASTM D3018, Type 1
  • National - ASTM D3462**
  • National - Classified in accordance with ICC-ES AC438
  • Regional - Miami-Dade County Product Control Approved***
  • Regional - State of Florida Approved
  • Regional - Texas Department of Insurance Listed
  • Regional - ICC-ES ESR- 1475****
  • Regional - ICC-ES ESR- 3267
  • Special Feature - Cool Roof Rating Council (CRRC) Rated*****
  • Special Feature / Regional - CA Title 24*****
  • Regional - CSA A123.5******
  • Special Feature / Regional - City of LA / LA County*******
  • Passes UL 2218 Impact-Resistance Test with Class 3 Rating
**ASTM D3462 - Periodically tested by independent and internal labs to ensure compliance with ASTM D3462 at time of manufacture. Applies to only some plants that make Royal Sovereign® Shingles and Marquis WeatherMax® Shingles. Applies to White only for Royal Sovereign® Shingles.
***Miami-Dade County Product Control Approved - Applies to some plants only that make Timberline® UHDZ™ Shingles, Royal Sovereign® Shingles and Marquis WeatherMax® Shingles. Applies to White only for Royal Sovereign® Shingles.
****ICC-ES ESR- 1475 - Applies to some plants only that make Royal Sovereign® Shingles and Marquis WeatherMax® Shingles.
*****Cool Roof Rating Council (CRRC) Rated - Applies to Copper Canyon, Birchwood, and Golden Amber only for Timberline HDZ®.
******CSA A123.5 - Applies to some plants only that make Timberline HDZ®, Timberline® NS, and Timberline AS II®.
*******City of LA / LA County - Applies to the following shingles/colors: Timberline HDZ® Birchwood, Golden Amber.

Product Documentation

View All Documents

Similar Shingles You May Be Interested In

  • Shingle Type
  • Shingle Construction
  • Made in the USA With Domestic and Imported Materials
  • Lifetime Limited Warranty†
  • WindProven Limited Warranty¹
  • LayerLock® Technology
  • Algae Protection
  • Cool Roof Rating
  • Impact Resistance Rating
  • Timberline HDZ® Image

    Timberline HDZ®

    4.8 out of 5 stars. 18929 reviews

    $$

  • Timberline Lifetime Shingles
  • Timberline architectual shingle icon
  • checkmarl
  • checkmarl
  • checkmarl
  • checkmarl
  • 25-year StainGuard Plus™ Limited Warranty
  • Title 24* & LA County Green Building Code** - select colors
  • UL 2218 Class 3
  • Timberline UHDZ® Image

    Timberline UHDZ®

    4.9 out of 5 stars. 101 reviews

    $$$

  • Timberline Lifetime Shingles
  • Timberline architectual shingle icon
  • checkmarl
  • checkmarl
  • checkmarl
  • checkmarl
  • 30-year StainGuard Plus™ PRO Limited Warranty
  • UL 2218 Class 3
  • Timberline® NS Image

    Timberline® NS

    4.8 out of 5 stars. 501 reviews

    $

  • Timberline Lifetime Shingles
  • Timberline NS shingle icon
  • checkmarl
  • checkmarl
  • 10-Year StainGuard® Protection Limited Warranty
* Can be used to comply with the Cool Roof Requirements for steep slope residential buildings of 2022 Title 24, Part 6, of the California Code of Regulations
** Meets the Green Building Standards Code of Los Angeles County
