About EverGuard® TPO Coated Hercules Drains

One-piece seamless body manufactured from 0.125" 11-gauge spun aluminum used for depressed sump area for improved flow and to facilitate drainage. Incorporates U-Flow® Seal technology, a trademark of OMG Roofing Products, providing a mechanical watertight connection to PVC or cast iron pipes. TPO-coated flange for direct hot-air welding of TPO roof membranes.

   Thickness Weights/Pallet Weight/Carton

3" (76 MM) DRAIN

 0.125" 11-gauge spun aluminum
 195 lb. (88.5 kg)
9.75 lb. (4.4 kg)
4" (102 MM) DRAIN
 0.125" 11-gauge spun aluminum
 200 lb. (91 kg)
10 lb. (4.5 kg)
 5" (127 MM) DRAIN
 0.125" 11-gauge spun aluminum
 200 lb. (91 kg)
 10 lb. (4.5 kg)
 6" (152.4 MM) DRAIN
 0.125" 11-gauge spun aluminum
 220 lb. (100 kg)
 11 lb. (5 kg)

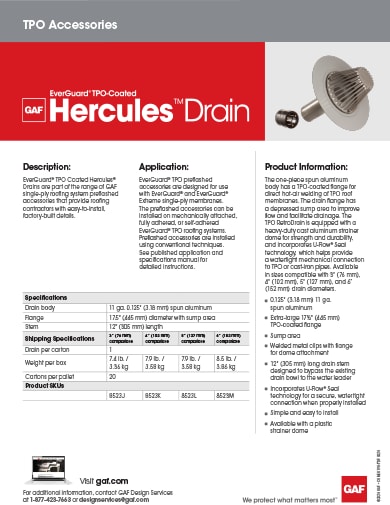

Product Documentation
